How Does Azure Architecture Support Multi-Chatbot Platforms?

As organizations deploy AI chatbots across teams like HR, IT, and Finance, the challenge shifts from building individual bots to managing a broader system. Each bot may have its own logic, access rules, and data sources—but they often need to run on shared infrastructure, follow consistent governance, and remain easy to maintain.

Without a clear architecture, chatbot development can become fragmented. Teams may duplicate logic, struggle with version control, or lose visibility into performance. A structured, modular approach is essential—especially when working with multiple bots across different departments.

Azure provides a set of tools and services that support this approach. Azure AI Foundry, Prompt Flow, and Azure OpenAI enable teams to design and operate chatbots as part of a unified platform. With proper use of configuration, orchestration, and monitoring layers, chatbots can remain flexible while still being centrally managed.

This article outlines a reference Azure architecture for chatbot platforms. It covers each layer—from user interfaces and APIs to prompt management, model inference, and monitoring—highlighting the services and patterns that help teams build scalable, maintainable solutions using Azure-native tools.

2. Architectural Goals: What the Platform Must Deliver

Designing a scalable chatbot platform isn’t just about connecting services—it's about aligning AI technical capabilities with organizational needs. In a multi-bot environment, where each assistant may serve a different department or use case, the architecture must strike a balance between shared efficiency and isolated control.

The Azure-based architecture outlined in this article is designed to meet four core goals:

Shared infrastructure with isolated bot control
The system should allow multiple bots to run on a common foundation—LLM deployments, APIs, telemetry—while keeping configuration, logs, and permissions scoped to each bot.

Per-bot customization (logic, prompts, data)
Each chatbot must be independently configurable. That includes using different prompt flows, connecting to separate knowledge sources, and applying logic that reflects the team or function it supports.

Centralized governance, security, and observability
Platform teams should be able to enforce consistent access policies, manage prompt versions, and monitor activity across bots from a single control plane—without limiting individual bot autonomy.

Efficient operations and CI/CD automation
Deployment pipelines, configuration management, and infrastructure provisioning must be automated to support rapid delivery and safe updates across environments.

Together, these goals define the blueprint for a maintainable, future-proof Azure chatbot architecture—capable of supporting growing workloads, evolving requirements, and strong internal controls.

3. Azure Architecture: Core Components and Services by Layer

This Azure-native architecture is designed to support multiple internal chatbots across departments, each with its own logic, prompts, and knowledge sources—while relying on a shared foundation of infrastructure, orchestration, and security.

At a high level, the architecture is layered, with clearly defined roles for user interfaces, APIs, orchestration logic, model inference, prompt flows, and monitoring. Bots can be customized individually, but they run on a consistent, centralized platform that’s easier to scale, secure, and maintain.

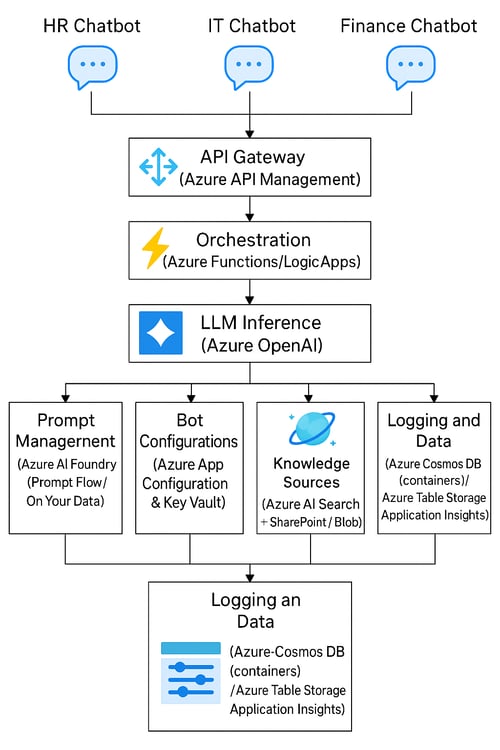

Before breaking down each architectural layer, let’s look at one of the key design decisions that affects how bot logic is orchestrated.

Orchestration Layer: Choosing the Right Azure Service

Your orchestration layer defines how chatbot behavior is executed—handling things like user context enrichment, routing to the right prompt, and calling downstream systems. Azure offers two powerful options depending on your team's needs:

Azure Functions

• Best for: Custom business logic, real-time performance, complex data transformations
• Benefits: More control, flexible programming model, high throughput
• Use cases:
  • Enriching chat requests with user context from Microsoft Graph
  • Calling custom APIs or secure data sources
  • Handling adaptive prompt selection logic

Azure Logic Apps

• Best for: Visual workflow design, Microsoft 365 integration, non-technical teams
• Benefits: Low-code approach, built-in connectors for SharePoint, Outlook, Dynamics, etc.
• Use cases:
  • Routing approvals or escalations
  • Fetching and formatting documents from SharePoint
  • Integrating with ticketing or HR platforms

3.1 User Interface Layer

The user interface is the entry point for end users—whether that’s a Teams chat, an internal SharePoint widget, or a custom web-based portal. In this architecture, the UI layer is intentionally lightweight. It handles input and output only, passing all conversational context and logic to the backend.

Azure provides several options here:

• Power Apps is ideal for embedding bots in internal portals with minimal code.
• Static Web Apps can host fast, secure web-based chat UIs.
• The Bot Framework SDK enables native conversational experiences directly inside Microsoft Teams.

Keeping logic out of the UI ensures consistent behavior across interfaces and simplifies updates, as prompt flows and LLM orchestration remain centralized.

3.2 API Gateway Layer

All chatbot requests—regardless of which bot or interface they originate from—are routed through a single API layer using Azure API Management (APIM). This layer centralizes authentication, rate limiting, request routing, and telemetry tagging.

You can configure routing in a few ways:

• Path-based routing (e.g., /api/hr-bot/chat) is recommended for simplicity, easier debugging, and better caching.
• Header-based routing allows for a shared endpoint (e.g., /api/chat) with the bot type specified via headers (e.g., X-Bot-Type: hr).
• A hybrid approach combines Azure Front Door for external traffic management with APIM for internal routing flexibility.

By standardizing API access across all bots, teams gain consistency, observability, and better access control without hard-coding logic per bot.

3.3 Orchestration Logic

The orchestration layer is where chatbot-specific behavior lives. This includes routing requests to the correct prompt, enriching the request with user context, validating inputs, logging results, and managing fallback logic.

Two Azure services are used here:

• Azure Functions provide high-performance, code-first logic for scenarios like user profile lookups, custom authentication, or adaptive routing.
• Azure Logic Apps offer a low-code option for integrating with Microsoft 365, SharePoint, or other business systems through built-in connectors.

A common pattern is to use Functions for core logic—such as determining which prompt to invoke or performing security checks—and Logic Apps for integration workflows like approval processes or document retrieval.

This separation ensures that business logic is centralized, reusable, and consistent across bots, while still allowing each bot to behave uniquely based on its context.

3.4 LLM Inference Layer

At the core of chatbot responses is Azure OpenAI, which handles the actual model inference using Azure OpenAI models such as GPT-4o and later. All bots in this architecture share a single model deployment, improving efficiency and simplifying resource management.

To manage prompt orchestration, versioning, and deployment control, we use Azure AI Foundry—which acts as the configuration and routing layer on top of Azure OpenAI. Each request includes metadata (e.g., bot ID, prompt ID, system message) that determines which prompt to run and how the model behaves.

This approach allows teams to:

• Customize behavior per bot using one shared model endpoint
• Track prompt and deployment versions cleanly
• Iterate safely using version-controlled flows inside AI Foundry

3.5 Prompt Management Layer

Azure services used:

• Azure AI Foundry, including:
  • Prompt Flow (for prompt orchestration and chaining)
  • Data Grounding (for integrating internal knowledge sources)

Prompt logic defines how each bot responds to user queries—and in this architecture, that logic is managed centrally through Azure AI Foundry.

With Prompt Flow, teams can visually orchestrate conversation flows, chain external tools, and version prompts for each chatbot. Each bot can have its own unique flow while still reusing shared components like tone, disclaimers, or fallback strategies. This modularity helps scale design efforts across teams without duplicating work.

Data Grounding, integrated within Prompt Flow, allows bots to augment their responses using internal content—such as documents, policies, or structured data—via RAG pipelines.

Together, these tools make chatbot behavior transparent, versioned, and testable—supporting fast iteration, safe updates, and better collaboration across departments.

3.6 Configuration and Secrets Management

Each chatbot requires dynamic configuration and secure credentials—such as which model deployment to use, which prompt version to invoke, or how to connect to internal systems. Rather than hardcoding these values, this architecture relies on two Azure services to manage them centrally and securely:

• Azure App Configuration stores per-bot metadata like system prompt IDs, model versions, tone settings, and fallback logic. Bots can access these settings at runtime, making updates easy without redeploying.
• Azure Key Vault secures sensitive values such as API keys, embedding store credentials, and access tokens, all protected with role-based access controls.

This setup keeps chatbot behavior decoupled from environment-specific values—making the platform more secure, easier to update, and consistent across staging and production. Azure AI Foundry references these configurations during orchestration but doesn't store them directly.

3.7 Data Storage and Isolation

Chatbots generate a wide range of data—from user interactions to error logs and performance telemetry. This architecture uses Azure Cosmos DB and Azure Table Storage to manage that data in a way that supports both scalability and operational clarity.

• Azure Cosmos DB is used to store structured chat history, user interaction logs, and custom metadata. It supports per-bot partitioning through containers, enabling each department (e.g., HR, IT, Finance) to keep data logically isolated while using the same database.
• Azure Table Storage offers a cost-effective option for storing lightweight records like telemetry events, evaluation feedback, or session summaries.

This setup allows teams to track usage, troubleshoot issues, and analyze chatbot behavior without cross-contamination of data between bots. It also supports audit and compliance requirements by keeping logs organized and queryable by bot ID or department.

3.8 Knowledge Integration

To deliver accurate, context-aware answers, enterprise chatbots often need to reference internal documents, policies, and structured data. This architecture integrates multiple Azure services to support Retrieval-Augmented Generation (RAG) and hybrid responses:

• Azure AI Search indexes internal content—such as HR manuals, IT procedures, or compliance rules—so it can be queried at runtime by the bot. Each chatbot can use a dedicated index or filtered views of shared indexes based on its scope.
• Azure Blob Storage and SharePoint Connectors serve as content sources for documents and knowledge bases. These sources feed AI Search and provide input to RAG pipelines inside AI Foundry.

Through Data Grounding in Prompt Flow, each bot can retrieve and reference this data as part of its orchestration. This enables responses that combine LLM flexibility with organizational knowledge—without requiring custom code for each integration.

3.9 Monitoring and Telemetry

Effective observability is essential for managing multiple chatbots in production. This architecture uses Azure Monitor, Application Insights, and Log Analytics to capture and analyze operational data across all bots in a centralized way.

• Application Insights tracks latency, error rates, and usage patterns. Each request is tagged with metadata (such as bot_id or department) to support granular filtering and diagnostics.
• Azure Monitor provides alerting and visualization across metrics, including performance spikes or unexpected response behavior.
• Log Analytics aggregates logs from all bots, making it easy to query, analyze trends, and identify anomalies at scale.

By using consistent tagging and centralized dashboards, teams gain real-time visibility into how each bot performs—enabling faster debugging, performance tuning, and feedback loops for continuous improvement.

3.10 CI/CD and Infrastructure as Code

Managing multiple bots requires automation and repeatability across environments. This architecture uses a combination of GitHub Actions, Azure DevOps Pipelines, and infrastructure-as-code templates to support fast, consistent deployments.

• GitHub Actions and Azure DevOps Pipelines automate key workflows—such as deploying new chatbots, updating prompt flows, publishing APIs, or provisioning Azure Functions.

• Bicep or Terraform templates define the chatbot infrastructure as code. This includes APIM routes, AI Foundry resources, configuration stores, and monitoring setup.

By versioning prompts, configurations, and infrastructure definitions in source control, teams can deploy changes safely and consistently. A new bot can be launched in minutes—with the right prompt, API setup, and governance controls—by updating configuration files and running an automated pipeline.

Table: Azure-Based Reference Architecture – Components

4. Design in Action: Key Architectural Concepts in Practice

The components described above don’t operate in isolation—they form a cohesive, layered system that balances flexibility with centralized control. Here’s how those principles play out when designing and deploying a multi-chatbot platform on Azure.

Shared Inference and Logic, Customized Context

Instead of deploying a separate model for each bot, a shared Azure OpenAI deployment serves multiple assistants. Azure Functions (or Logic Apps) determine the context at runtime—injecting the appropriate prompt, model configuration, or tone for each request.

This allows teams to maintain a single model endpoint while delivering customized behavior for HR, IT, Finance, or any other department.

Central Prompt Management

With Prompt Flow, each bot’s orchestration flow is versioned, testable, and easy to modify. Teams can reuse core elements—like disclaimers or error handling—while still supporting unique bot logic.

This approach keeps chatbot design modular, promotes consistency across teams, and makes updates safer and more efficient.

Metadata-Driven Bot Routing

Routing logic is driven by configuration—not code. A store such as Azure App Configuration or Cosmos DB maps bot identifiers to their prompt flow, model variant, and knowledge sources.

When a request comes in, Azure Functions read this metadata and apply the correct logic dynamically. This pattern scales well and avoids hardcoded rules.

Per-Bot Data Isolation and Access Control

Each chatbot logs to its own partitioned space—making it easier to analyze usage patterns, debug issues, and respect data boundaries across departments.

Role-based access control (RBAC) via Microsoft Entra ID ensures that only the right users can manage, view, or modify a given bot’s configuration or data.

Hybrid Knowledge Integration

Using Azure AI Search, SharePoint, and Blob Storage, bots can access internal knowledge without duplicating or storing data in the prompt itself. Foundry’s Data Grounding pipeline enables bots to reference documents, policies, or structured content in real time.

This supports complex queries (like “What’s the latest travel policy for EMEA?”) while keeping prompts lightweight and flexible.

Observability at Scale

Application Insights and Log Analytics collect detailed telemetry across all bots—tagged with metadata like bot_id or tenant_id. This allows platform teams to monitor performance, usage, and errors across the entire system, or drill down into a specific bot’s behavior.

Dashboards and alerts help teams catch issues early and iterate based on real-world usage.

Repeatable Deployment Through Automation

Every component—prompts, APIs, Azure Functions, config—can be deployed using Infrastructure as Code and CI/CD pipelines. This means new bots can be launched quickly using version-controlled templates, reducing manual work and operational risk.

Teams can test changes in staging, roll out updates gradually, and manage multiple environments with confidence.

5. Reference Deployment: Real-World Azure OpenAI Chatbot Platform

What does this architecture look like in a real-world, enterprise environment?

The deployment example below reflects a production-grade, Azure-native architecture built to support multiple internal chatbots across departments. It brings together shared infrastructure, per-bot customization, centralized governance, and secure data access—fully aligned with Azure best practices for multi-agent LLM systems.

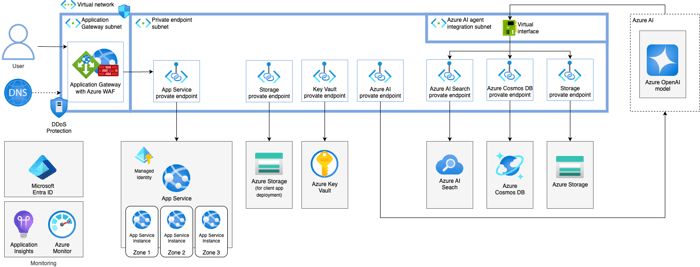

Source: Created by Mariusz Zawadzki based on Microsoft input

Source: Generated by Dall-e based on Microsoft input

Example Deployment: Multi-Chatbot Platform at Scale

This setup supports functional chatbots for HR, IT, and Finance, all running on shared cloud infrastructure while maintaining separation in logic, data, and monitoring.

1. Chatbot Interfaces (Top Layer)

Chatbots are accessed via Microsoft Teams, embedded SharePoint widgets, or internal web apps.

• These frontends are thin clients—they handle input/output only.

• All logic and orchestration reside in the backend services for consistency and ease of maintenance.

2. API Gateway – Azure API Management (APIM)

Serves as the central entry point for all chatbot traffic.

• Routes requests using path-based (e.g., /chatbot/hr) or header-based methods (e.g., X-Bot-Type: hr).

• Applies rate limiting, versioning, and OAuth2 policies via Microsoft Entra ID.

• Enables policy-based access control and auditing per chatbot or department.

3. Orchestration Layer – Azure Functions / Logic Apps

Handles request routing, user context, and bot-specific logic.

• Azure Functions manage core business logic, such as prompt selection, permission checks, and user enrichment via Microsoft Graph.

• Azure Logic Apps handle workflow-based processes (e.g., document approvals, SharePoint lookups).

This separation ensures flexibility: Functions for speed and customization, Logic Apps for integration and automation.

4. LLM Inference – Azure OpenAI via AI Foundry

All bots use a shared Azure OpenAI models such as GPT-4o and later deployment.

• Each request is dynamically injected with the correct system prompt and persona context based on bot identity.

• Prompt versions and model configurations are managed centrally using Azure AI Foundry.

5. Prompt Management – Azure AI Foundry (Prompt Flow)

Each bot has a unique prompt orchestration flow that defines tone, format, fallback behavior, and RAG integration.

• Prompts are version-controlled and centrally managed.

• Prompt Flow allows chaining, conditional logic, and pre-deployment evaluation workflows.

• Shared elements like disclaimers or formatting logic can be reused across bots.


6. Configuration & Secrets – App Configuration & Key Vault

• Azure App Configuration stores dynamic settings per bot (e.g., prompt IDs, tone, fallback logic).

• Azure Key Vault secures sensitive data such as API tokens, model keys, or embedding service credentials.

Bots retrieve this config at runtime, enabling code-free updates across environments.

7. Knowledge Sources – Azure AI Search, SharePoint, Blob Storage

Bots reference internal knowledge via RAG pipelines using:

• Azure AI Search for indexed documents and structured data

• SharePoint connectors and Blob Storage for internal files, PDFs, policies, and other content

• Data Grounding in Prompt Flow integrates this knowledge into chat flows dynamically

Each bot can use a unique index or filtered view of a shared one.

8. Data Storage – Azure Cosmos DB / Table Storage

Chat logs, usage metrics, and feedback data are stored in:

• Azure Cosmos DB (for chat history, JSON metadata, per-bot collections)

• Azure Table Storage (for lightweight telemetry or audit logs)

Per-bot partitioning ensures isolation and simplifies debugging, analytics, and compliance.

9. Monitoring & Observability – Azure Monitor, Application Insights

Every bot request is logged and tracked with rich metadata.

• Application Insights captures latency, errors, and usage spikes, all tagged with bot_id, user_role, or team_id.

• Azure Monitor and Log Analytics provide dashboards for live monitoring and long-term analysis.

This gives platform owners visibility across all bots—and fine-grained insights into each one.

10. CI/CD & Infrastructure as Code – GitHub Actions + Bicep/Terraform

Infrastructure and bot logic are fully automated and versioned.

• Bicep or Terraform defines API gateways, functions, configuration stores, and more.

• GitHub Actions (or Azure DevOps Pipelines) automate deployments:

  • New bot setup

  • Prompt and config publishing
  • Staging and rollback testing


Result: New bots can be deployed in under 15 minutes using approved config files and prompts.

6. Conclusion: Building a Future-Ready Azure Chatbot Platform

Designing a chatbot system that scales across teams isn’t just about picking the right model—it’s about building the right architecture.

By following the layered Azure-based approach outlined in this article, teams can create a platform that supports multiple bots, enforces governance, and adapts as needs evolve. Each component—API Management, Prompt Flow, OpenAI deployments, orchestration logic, and monitoring—works together to deliver modularity, performance, and control.

Azure AI Foundry forms the backbone of this system. It unifies prompt orchestration, model versioning, and RAG-based knowledge integration—all in a way that’s secure and easy to manage. With Prompt Flow, chatbot designers get the tools they need to iterate safely. And with Azure OpenAI, teams gain enterprise-ready access to world-class language models backed by Microsoft’s security and compliance standards.

Whether you’re launching your first internal assistant or managing dozens of bots across departments, this architecture gives you a strong foundation—and room to grow.
